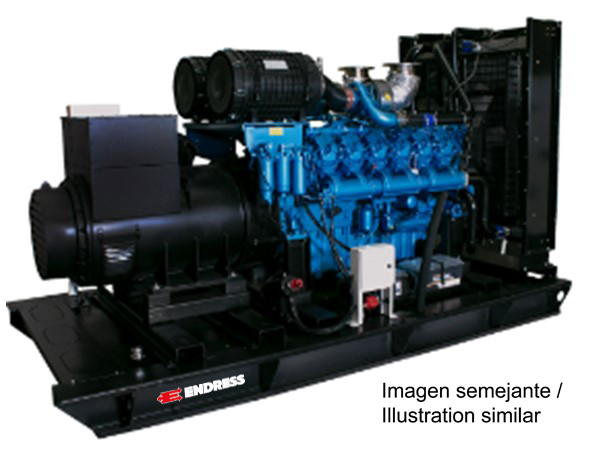

ESE 1000 CW+MPP
Bookmarks (0)
Product comparison (0)
Technical data and documentation
ESE 1000 CW+MPP

Order number 89312015

Prime power (PRP) [kVA/kW]

1000/800

Alternator type

ECO43 2S4 A

Nominal voltage [V]

480/277

Nominal current 3~ (PRP) [A]

1203,4

Frequency [Hz]

60

Voltage regulation

electrical

Engine

Brand

Cummins

Model

KTA38-G2A

Emission regulation

N/A

Cooling system

water-cooled

Displacement [ccm]

37800

Engine output (PRP) [kW]

915

RPM [U/min]

1800

RPM regulation

Electronic

Fuel

Diesel

Fuel consumption @ 75% PRP [L/h]

164

Running time @ 75% PRP

7,3

Starting system

Electric

Electric circuit

24
