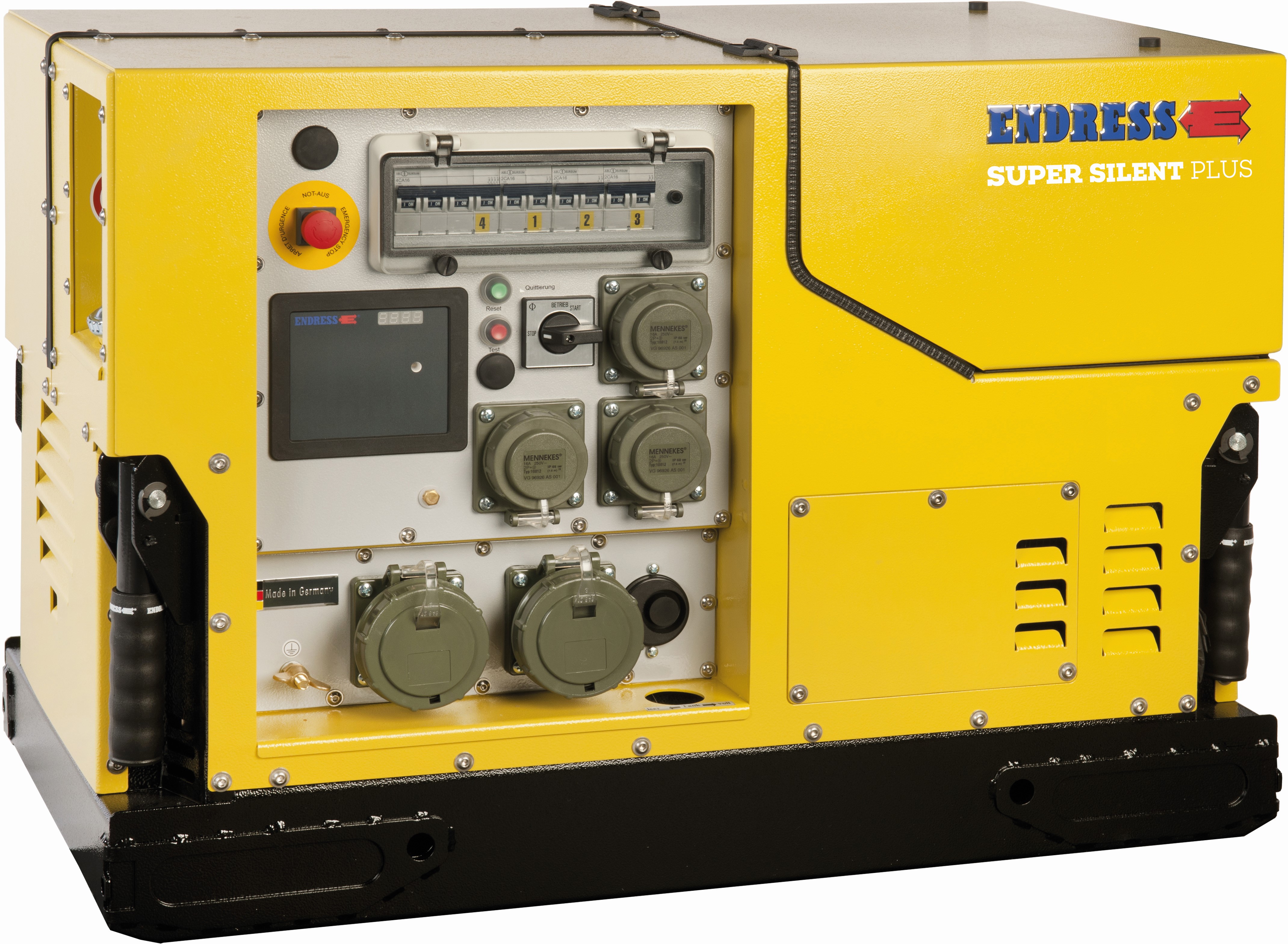

ESE 1308 DBG ES DIN Super Silent Plus
Order number 156416
Alternator type | Duplex |
Continuous Power 3~ [kVA/kW] | 13.2/10.6 |
Continuous Power 1~ [kVA/kW] | 7.2/6.5 |
Nominal voltage [V] | 400/230 |
Nominal Current [A] | 19.1/31.3 |
Frequency [Hz] | 50 |
Engine | |
|---|---|
Engine Type | B&S Vanguard 23 HP |
Design | 2-Zyl. 4-Takt OHV |
Displacement [ccm] | 627 |
Output 3000 rpm | 15,0 |
CO2 emissions [g / kWh] | 901,18 |
CO2 test procedure | G1 |
Fuel | Benzin |
Running time @ 75% PRP | 2,3 |
Starting system | Elektrostart |
Weight in kg ca. | 144 |
Dimensions L x W x H [mm] | 820 x 440 x 580 |
Shockproof sockets | 3 x 230V 16A 2 x 400V CEE 16A |
- Fitted according to DIN 14685-1
- Comprehensive functions, safe and simple operation
- DUPLEX current quality without compromise
- Multifunctional control display E-MCS 4.0 - a clear system
- Large fuel tank for long operation – without refuelling
- Emergency start function over the recoil starter
- Special equipment and accessories, available for many requirements
- Insulation monitoring – without shut-off
- 3-way fuel valve for external refuelling
- Multifunction control display E-MCS 4.0
- Fuel level indicator over the E-MCS 4.0
- Lack of oil automatic switch-off
- Alternator overload protection
- Starter battery 12 V/20 A
- Folding handles
- Spark plug wrench
FireCAN | Article number: 163 140 |
Automatic Choke | Article number: 163 030 |
Remote start device | Article number: 163 150 |
Beos charging current socket | Article number: 163 080 |
Charging current socket DIN 14690 | Article number: 163 010 |
Charging current socket MagCode | Article number: 163 018 |
External start Nato socket | Article number: 163 000 |
Insulation monitoring device with shut-off | Article number: 163 071 |
ECOtronic system | Article number: 163 020 |
Colour red RAL 3000 | Article number: 163 180 |
