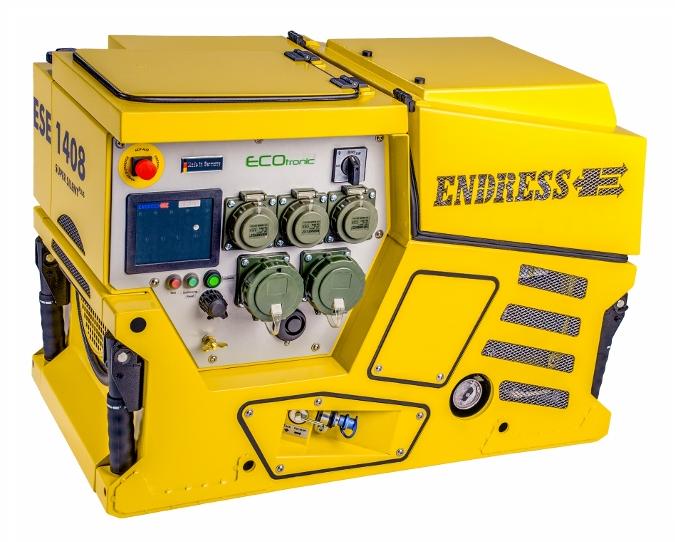

ESE 1408 DBG ES EFI DIN Super Silent Plus
Order number 156519
Alternator type | Duplex |
Continuous Power 3~ [kVA/kW] | 13.9/11.1 |
Continuous Power 1~ [kVA/kW] | 7.5/6.7 |
Nominal voltage [V] | 400/230 |
Nominal Current [A] | 20,1/32,6 |
Frequency [Hz] | 50 |
Engine | |
|---|---|
Engine Type | B&S Vanguard 23 HP EFI |
Design | 2-Zyl. 4-Takt OHV |
Displacement [ccm] | 627 |
Output 3000 rpm | 15,0 |
CO2 emissions [g / kWh] | 739,74 |
CO2 test procedure | G1 |
Fuel | Benzin |
Running time @ 75% PRP | 2,2 |
Starting system | Elektrostart |
Weight in kg ca. | 144 |
Dimensions L x W x H [mm] | 820 x 440 x 580 |
Shockproof sockets | 3 x 230V 16A 2 x 400V CEE 16A |
- Fitted according to DIN 14685-1
- Comprehensive functions, safe and simple operation
- DUPLEX current quality without compromise
- Multifunctional control display E-MCS 4.0 - a clear system
- ECOtronic - technology for the future
- Large fuel tank for long operation – without refuelling
- Emergency start function over the recoil starter
- Special equipment and accessories, available for many requirements
- Electronic fuel injection engine (EFI)
- Exhaust gas routing side changeable
- Insulation monitoring – without shut-off
- 3-way fuel valve for external refuelling
- Multifunction control display E-MCS 4.0
- Fuel level indicator over the E-MCS 4.0
- Lack of oil automatic switch-off
- Alternator overload protection
- Starter battery 12 V/20 A
- Folding handles
- Spark plug wrench
- LED instrument panel illumination
FireCAN | Article number: 163 140 |
Remote start device | Article number: 163 150 |
Beos charging current socket | Article number: 163 080 |
Charging current socket DIN 14690 | Article number: 163 010 |
Charging current socket MagCode | Article number: 163 018 |
External start Nato socket | Article number: 163 000 |
Insulation monitoring device with shut-off | Article number: 163 071 |
Colour red RAL 3000 | Article number: 163 180 |
ENDRESS Elektrogerätebau GmbH
Neckartenzlinger Straße 39
D-72658 Bempflingen
Tel.: +49 (0) 71 23 / 97 37 - 0
E-Mail: info@endress-stromerzeuger.de
Similar products
| ESE 908 DBG ES DIN Super Silent Plus | |
| Power [kVA/kW] | 9.0/7.2 |
|---|---|
| Nominal voltage [V] | 400/230 |
| Weight in [kg] | 132 |
| Dimensions L x W x H [mm] | 820 x 440 x 580 |
| ESE 1308 DBG ES DIN Super Silent Plus | |
| Power [kVA/kW] | 13.2/10.6 |
|---|---|
| Nominal voltage [V] | 400/230 |
| Weight in [kg] | 144 |
| Dimensions L x W x H [mm] | 820 x 440 x 580 |
| ESE 1408 DBG ES EFI DIN Super Silent Plus | |
| Power [kVA/kW] | 13.9/11.1 |
|---|---|
| Nominal voltage [V] | 400/230 |
| Weight in [kg] | 144 |
| Dimensions L x W x H [mm] | 820 x 440 x 580 |
