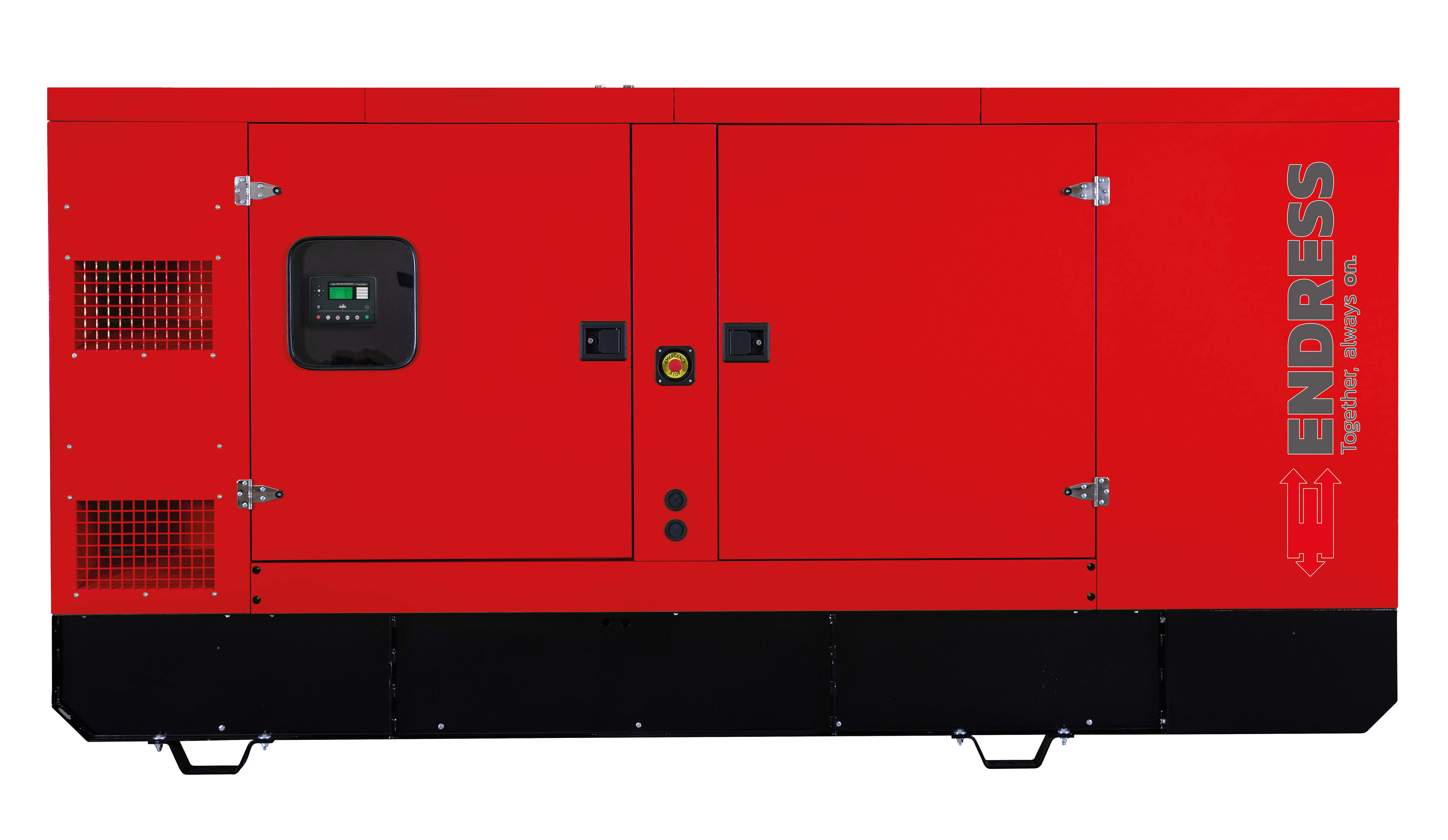

ESE 460 VW/AS
Bookmarks (0)
Product comparison (0)
Technical data and documentation
ESE 460 VW/AS

Order number 321259

Main features

Prime power (PRP) [kVA/kW]

417.7/334.2

Alternator type

Synchron

Nominal voltage [V]

400/230

Nominal current 3~ (PRP) [A]

603

Frequency [Hz]

50

Weight in kg ca.

4251

Dimensions L x W x H [mm]

4000 x 1460 x 2147

Engine

Brand

Volvo

Model

TAD1344GE

Emission regulation

Stage II

Cooling system

wassergekühlt

Displacement [ccm]

12780

Engine output (PRP) [kW]

364

RPM [U/min]

1500

RPM regulation

elektronisch

Fuel

Diesel

Fuel tank capacity [l]

650

Fuel consumption @ 75% PRP [L/h]

63,5

Running time @ 75% PRP

10,24

Starting system

Elektrostart

Electric circuit

24

Sound power level LWA [db(A)]

98

Sound pressure level LPA (7 m) [db(A)]

73

  • Automatic control panel with digital control
  • Problem-free use, also in winter through use of a standard engine and coolant prewarming
  • Electronic Engine Governer
  • Terminal board
  • Manual oil scavenger pump
  • Liquid collecting tray to protect the environment

Crane loading lug

Article number: auf Anfrage

E-RMA SIM remote monitoring

Article number: 342 228

E-RMA LAN remote monitoring

Article number: 342 229
