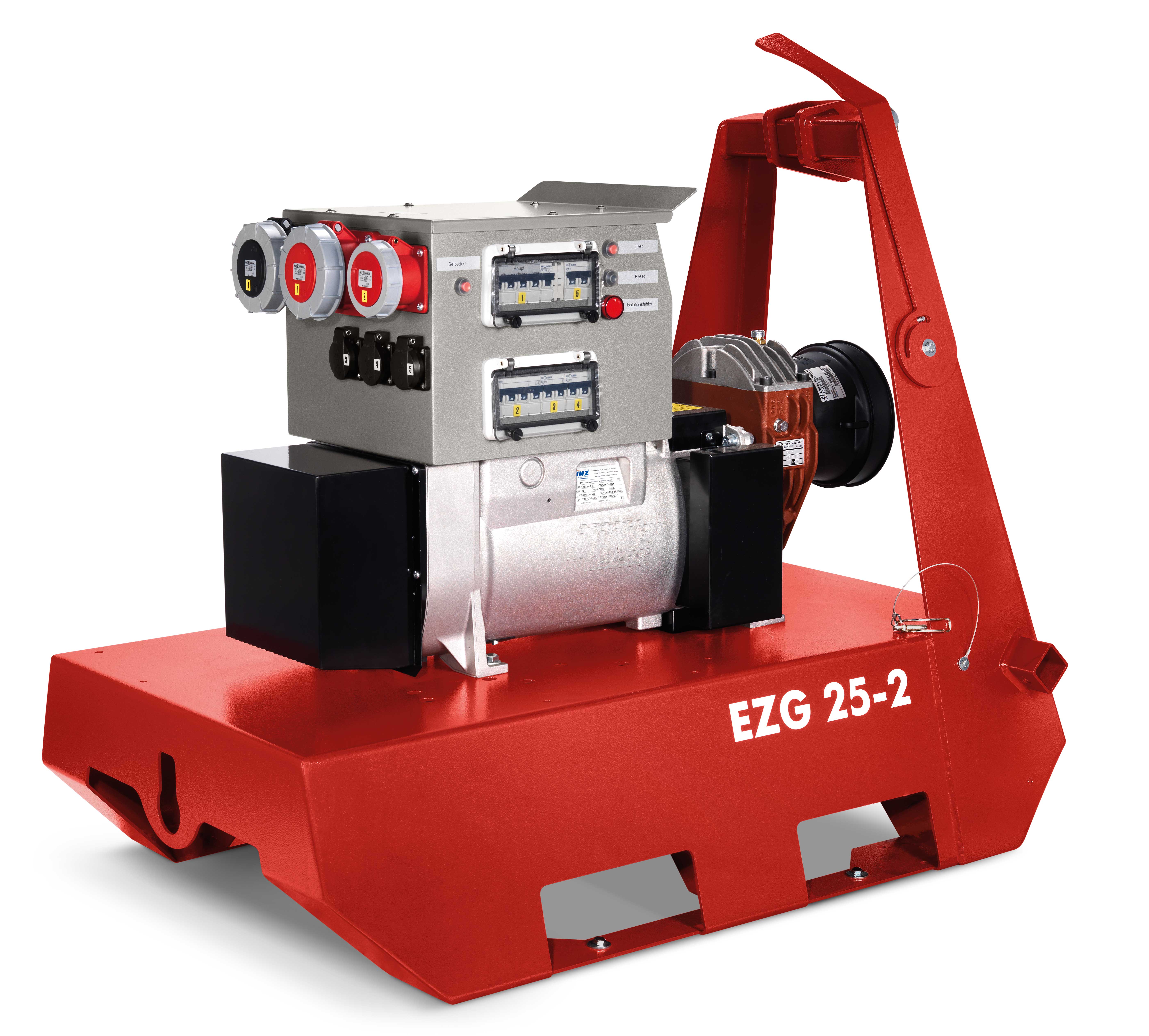

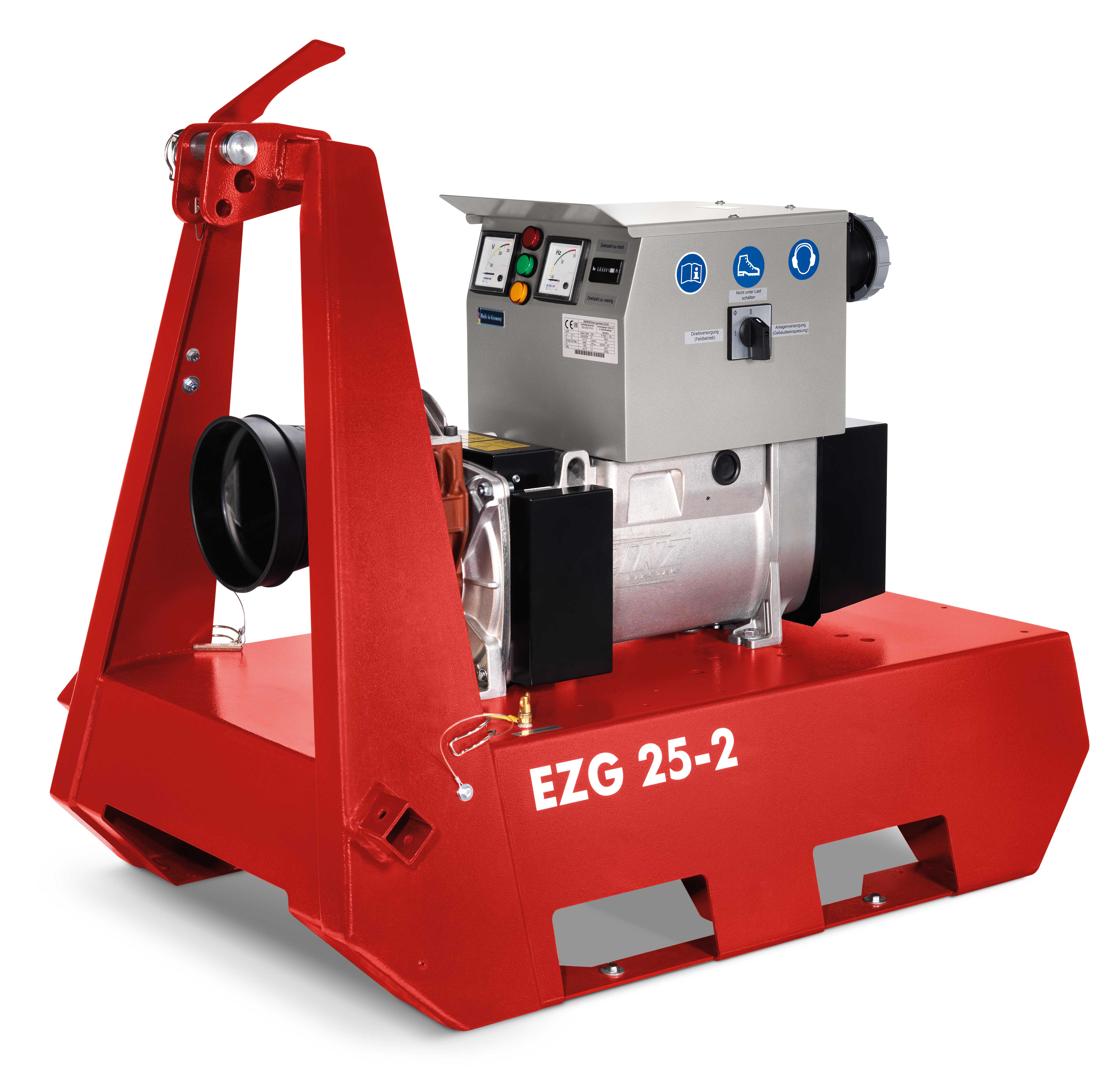

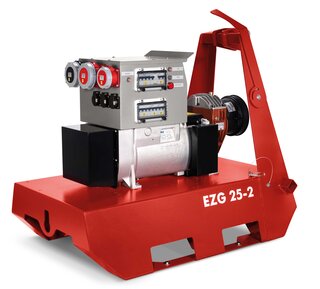

EZG 25/2 II/TN-S
Order number 511502
Variant | Einspeisebetrieb |
Alternator | |
|---|---|
Continuous output [kVA/kW] | 22.0/17.6 |
Nominal voltage [V] | 400/230 |
Voltage regulation | AVR |
Nominal Current [A] | 31,7 |
Frequency [Hz] | 50 |
Recommended tractor power output approx. [HP] | 50 |
Nominal speed of power take-off shaft | 430 |
Category 3-point suspension | 2 |
Weight in kg ca. | 195 |
Dimensions L x W x H [mm] | 1065 x 736 x 1031 |
Socket combination | 3 x 230 V/16 A 1 x CEE 400 V/16 A 1 x CEE 400 V/32 A 1 x CEE 400 V/32 A, 1 h |
- Switching option operation in the field / feed into a building (IT/TN network)
- Insulation monitoring during operation in the field - safe mobile operation
- Protection over the building installation in power feed operation (TN network)
- Fulfilment of the requirements of the Agricultural Employer's Liability Insurance Association
- Fuses over an all-phase line circuit breaker
- Incl. 3-point suspension Category 2
- Operating hours counter
- Monitoring and display of frequency and voltage
- Automatic safety switch-off
- Large control lamps simplify adjustment of the power take-off shaft rotational speed (traffic lights function)
- A robust steel frame with forklift pockets
- Development and manufacture in Germany
CEE Feed-in cable IT/TN 1h plug -> 1h coupling - CEE 400V / 32A 10m | Article number: 343 035 |
